"Holley Red" Street Performance Electric Fuel Pump
• #1 choice for street performance. • Weighs only 2.88lbs.
• NOT compatible with alcohol or methanol. • Distinctive Red
colour.
• Provides constant fuel flow with no pulsation. • Includes
mounting bracket.
• Has externally accessible pressure relief valve. • Flows 97
GPH (free flow).
• Pump design is more tolerant of contaminated fuels. • Flows
67 GPH at 5 PSI.
• Repair kits are readily available • Pressure pre-set at 7
PSI.
• Can be serviced either from pump end or brush cap end. • Standard
carburettor pressure.
• Regulator not required for most applications. • 7 1/2 Amp
fuse recommended.
• Not designed or recommended for use with fuel injection system.
• Motor draws 2 Amps current.
"Holley Blue" Competition Electric Fuel Pump
• Distinctive Blue colour. • Weighs less than 3lbs.
• Has externally accessible relief valve. • Repair kits are
readily available.
• Provides constant fuel flow with no pulsation. • Flows 110
GPH (free flow).
• Rugged pump design is highly tolerant of contaminated fuels. •
Flows 70 GPH at 9 PSI.
• Includes mounting bracket. • Pressure pre-set at 14 PSI.
• Can be serviced either from pump end or brush cap end. • Motor
draws 3 Amps current.
• NOT compatible with alcohol or methanol. • 7 1/2 Amp fuse
recommended.
• Includes PN 12-803 High Pressure Regulator.
• Not designed for use with fuel injection systems.
• Provides constant fuel flow with no pulsation. • Weighs less than 3lbs
• Externally accessible relief valve • Flows 140GPH (free flow)
• Rugged pump design is highly tolerant of contaminated fuels • Includes mounting bracket
• Repair kits are readily available • Flows 120 GPH at 9 PSI
• Compatible with alcohol or methanol • Pressure pre-set at 14 PSI
• Fuel pressure regulator is required (rec PN 12-803) • Motor draws only 4 Amps
• Use of safety shut off switch PN 12-810 strongly recommended.
• Not designed or recommended for use with fuel injectionsystems
• 3/8” NPT ports.
• 220” restriction (7/32).
• Includes mounting bracket.
• 3/8” NPT ports.
• 220” restriction (7/32).
• Includes mounting bracket.
12-805
• One -8 inlet port and four -6 outlet ports
• .437” (7/16) restriction
• Aluminium billet body and top casting cover are hard coat anodised
• Three fuel pressure gauge mounting options (fuel pressure gauge not included)
• Includes mounting hardware and AN style fittings
Pro-Series-Volumax
• Pressure preset @ 15 PSI. • Current draws 4 1/2 Amps.
• Positive displacement gerotor design. • Must have 3/8” NPT return line to tank.
• Teflon hard coat anodised billet components. • Includes AN style fuel fittings.
• Two 1/2” NPT inlet ports,one 1/2” NPT outlet port.
• GFLT seals compatible with alcohol fuels.
• Use 7.5 Amp fuse.
• Pressure preset @ 15 PSI.
• Positive displacement gerotor design.
• Teflon hard coat anodised billet components.
• Two 1/2” NPT inlet ports, one 1/2” NPT outlet port.
• GFLT seals compatible with alcohol fuels.
• Use 15 Amp fuse.
• 45 micron fuel inlet screen.
• Current draws 10 Amps.
• Must have 3/8” NPT return line to tank.
• Includes AN style fuel fittings.

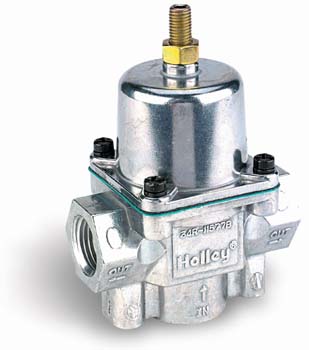

12-704Not designed or intended for continuous use
• Lightweight diecast aluminium components.
• Adjustable from 4 1/2 to 9 PSI.
• One 1/2” NPT inlet port.
• Two 1/2” NPT outlet ports.
• .437” (7/16) restriction.
• Includes mounting hardware and AN style fuel fittings.
• Teflon hard coat anodised die cast aluminium top cover
• Four AN -6” outlet ports.
• One AN -8” inlet port.
• Two 1/8” NPT fuel pressure gauge ports.
• .437 (7/16) restriction.
• Includes mounting hardware & AN style fuel fittings.

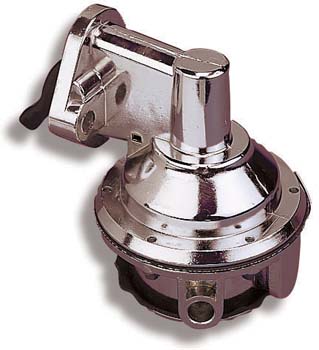

12-834These triple chrome plated pumps free flow up to 80 gallons per hour
and have a 7 1/2 PSI shutoff pressure. The adjustable lower housing allows
360deg rotation of fuel inlet-outlet fittings.
FUEL PUMP (Street performance)
• High output fuel flow.
• Flows 110 GPH (free flow).
• Shut-off pressure pre-set from 6 1/2 to 8 PSI.
• Heavy duty construction for continuous high RPM running.
• Six high flow valves ensures adequate fuel flow.
• 3/8 inlet and outlet ports.
• Zinc castings are tough and durable.
• Castings are plated and highly polished
• Repair kits are available to service critical components.
• Chev pump rocker arms are laminated for extra strength.
• Fuel body casting can be rotated.
• Fuel pressure regulator not required.

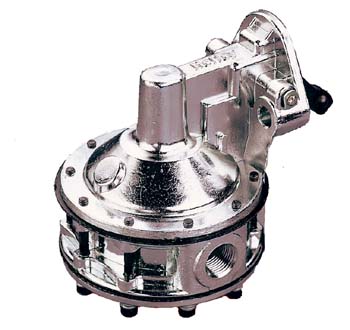

12-327
